EMIF01-100 Datasheet - Protek Devices

EMIF01-100 EMI FILTER/TVS ARRAY

www.DataSheet4U.com 05187 EMIF01-100 thru Only One Name Means ProTek’Tion™ EMIF01-150 EMI FIL TER/TVS ARRA Y APPLICA TIONS ✔ Cellular Phones ✔ SMART Cards ✔ Notebooks ✔ Personal Digital Assistant (PDA) ✔ Ground Positioning System (GPS) IEC COMPA TIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns FEA TURES ✔ ESD Protection > 25 kilovolts ✔ 18 Watts Peak Pulse Power per Line (tp = 8/20µs) ✔ Bidirectional EMI Filtering/TVS Low Pass Filters ✔ Low In.

EMIF01-100 Datasheet (217.20 KB)

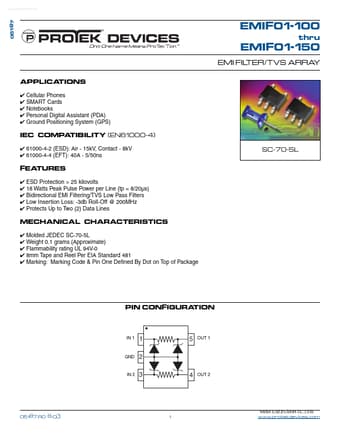

Preview of EMIF01-100 PDF
EMIF01-100 Datasheet Preview Page 2 EMIF01-100 Datasheet Preview Page 3

Datasheet Details

Part number:

EMIF01-100

Manufacturer:

Protek Devices

File Size:

217.20 KB

Description:

Emi filter/tvs array.
