EMIF01-TV02F3 - EMI filter and ESD protection

Product Overview

STMicroelectronics

Datasheet Details

Part number	EMIF01-TV02F3
Manufacturer	STMicroelectronics
File Size	148.54 KB
Description	EMI filter and ESD protection
Datasheet	EMIF01-TV02F3 Datasheet
Additional preview pages of the EMIF01-TV02F3 datasheet.

Product details

Description

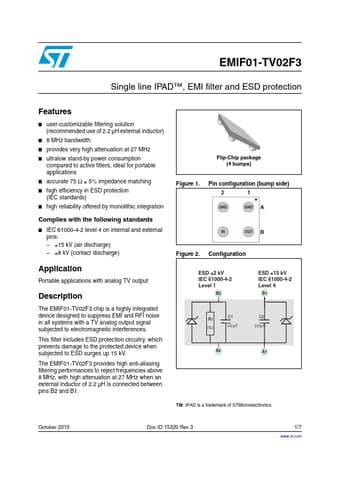

The EMIF01-TV02F3 chip is a highly integrated device designed to suppress EMI and RFI noise in all systems with a TV analog output signal subjected to electromagnetic interferences.

Features

user-customizable filtering solution (recommended use of 2.2 µH external inductor).
8 MHz bandwidth.
provides very high attenuation at 27 MHz.
ultralow stand-by power consumption compared to active filters, ideal for portable.
