LCD12C, LCD05C Datasheet - Protek Devices

LCD12C (LCD05C - LCD24C) 5LOW CAPACITANCE TVS ARRAY

The LCD Series are high powered multi-line TVS arrays available in a 16 pin DIP package. This series is designed to protect high-speed applications from the damaging effects of ESD, EFT and secondary transient threats. The LCD Series has a peak pulse power rating of 800 Watts for an 8/20µs waveshape.

LCD12C Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line)

* 800 Watts Peak Pulse Power per Line (tp = 8/20µs)

LCD05C_ProtekDevices.pdf

This datasheet PDF includes multiple part numbers: LCD12C, LCD05C. Please refer to the document for exact specifications by model.

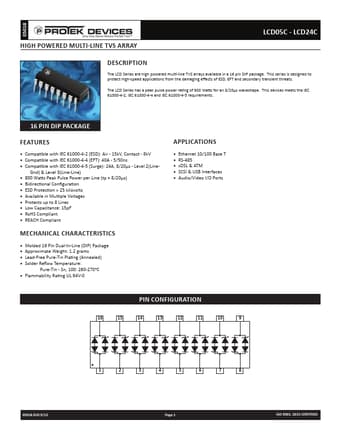

LCD12C Datasheet Preview Page 2 LCD12C Datasheet Preview Page 3

Datasheet Details

Part number:

LCD12C, LCD05C

Manufacturer:

Protek Devices

File Size:

516.71 KB

Description:

(lcd05c - lcd24c) 5low capacitance tvs array.

Note:

This datasheet PDF includes multiple part numbers: LCD12C, LCD05C.
Please refer to the document for exact specifications by model.
