LCD160G032A, LCD-160G032A - 160 x 32 Dots Graphic LCD

LCD160G032A Description

LCD-160G032A Vishay 160 x 32 Dots Graphic LCD .

LCD160G032A Features

* Available for external oscilation 2KHz
* Epson-SED 1520, or equivalent
* 1/32 duty cycle
* N. V. optional for + 3V power supply MECHANICAL DATA ITEM Module Dimension Viewing Area Mounting Hole Dot Pitch STANDARD VALUE 85.2 x 55.0 72.0 x 22.0 80.2 x 46.7 0.44 x 0.61

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCD160G032A, LCD-160G032A. Please refer to the document for exact specifications by model.

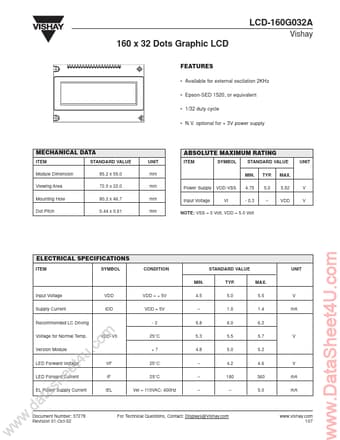

datasheet Preview Page 2

Datasheet Details

Part number
LCD160G032A, LCD-160G032A
Manufacturer
Vishay ↗ Intertechnology
File Size
128.78 KB
Datasheet
LCD-160G032A_VishayIntertechnology.pdf
Description
160 x 32 Dots Graphic LCD
Note
This datasheet PDF includes multiple part numbers: LCD160G032A, LCD-160G032A.
Please refer to the document for exact specifications by model.
