LCD-160G032A

160 x 32 Dots Graphic LCD

LCD-160G032A Features

* Available for external oscilation 2KHz

* Epson-SED 1520, or equivalent

* 1/32 duty cycle

* N.V. optional for + 3V power supply MECHANICAL DATA ITEM Module Dimension Viewing Area Mounting Hole Dot Pitch STANDARD VALUE 85.2 x 55.0 72.0 x 22.0 80.2 x 46.7 0.44 x 0.61

LCD-160G032A Datasheet (128.78 KB)

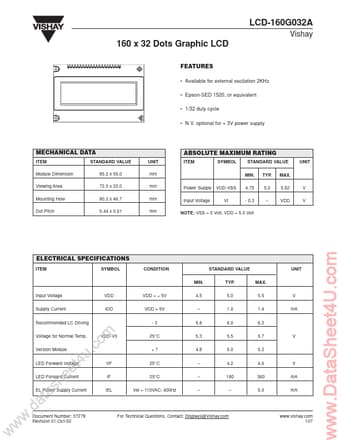

Preview of LCD-160G032A PDF

Datasheet Details

Part number:

LCD-160G032A

Manufacturer:

Vishay ↗ Intertechnology

File Size:

128.78 KB

Description:

160 x 32 dots graphic lcd.
