LCD-1602A

LCD

LCD-1602A Features

* y Display Mode: STN, BLUB y Display Formate: 16 Character x 2 Line y Viewing Direction: 6 O’Clock y Input Data: 4-Bits or 8-Bits interface available y Display Font : 5 x 8 Dots y Power Supply : Single Power Supply (5V±10%) y Driving Scheme : 1/16Duty,1/5Bias y BACKLIGHT(SIDE):LED(WHITE) 2.0 ABSOLUT

LCD-1602A General Description

Unit PCB Dimension 80.0
*36.0
*1.6 mm View Dimension 69.5
*14.5 mm 1602A-1 LCD Module Specification Ver1.0 2 SHENZHEN EONE ELECTRONICS CO.,LTD 5. 0 PIN ASSIGNMENT No. Symbol Level 1 Vss 2 Vdd 3 V0 4 RS 5 R/W 6 E 7 DB0 8 DB1 9 DB2 10 DB3 11 DB4 12 DB5 13.

LCD-1602A Datasheet (363.56 KB)

Preview of LCD-1602A PDF

Datasheet Details

Part number:

LCD-1602A

Manufacturer:

EONE

File Size:

363.56 KB

Description:

Lcd.

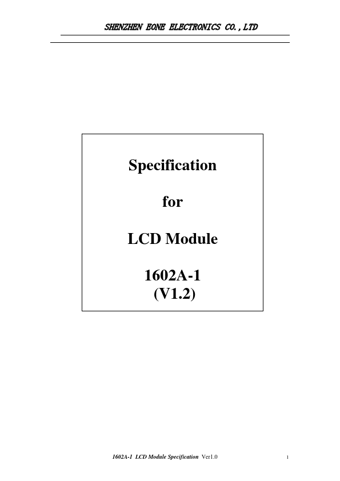

SHENZHEN EONE ELECTRONICS CO.,LTD Specification for LCD Module 1602A-1 (V1.2) 1602A-1 LCD Module Specification Ver1.0 1 SHENZHEN EONE ELECTRONICS C.
