LCD-160G160A

160 x 160 Dots Graphic LCD

LCD-160G160A Features

* No Built-in controller

* + 5V power supply

* 1/160 duty cycle

* 4-Bit parallel or 1-Bit serial interface mode MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch STANDARD VALUE 89.2 x 85.0 62.0 x 62.0 0.34 x 0.34 0.38 x 0.38 UNIT mm mm mm mm ABSO

LCD-160G160A Datasheet (128.87 KB)

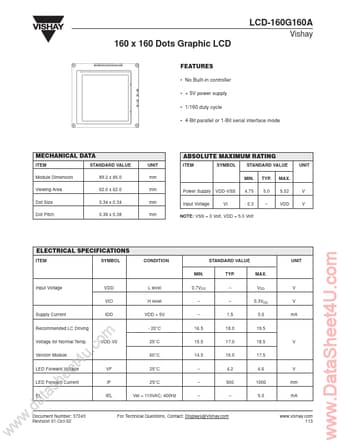

Preview of LCD-160G160A PDF

Datasheet Details

Part number:

LCD-160G160A

Manufacturer:

Vishay ↗ Intertechnology

File Size:

128.87 KB

Description:

160 x 160 dots graphic lcd.
