LCD-160G160B

160 x 160 Dots Graphic LCD

LCD-160G160B Features

* Built-in controller (LC7981)

* 1/160 duty cycle

* N.V. optional

* + 5V power supply MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch STANDARD VALUE 85.0 x 100.0 62.0 x 62.0 0.34 x 0.34 0.38 x 0.38 UNIT mm mm mm mm ABSOLUTE MAXIMUM RATING ITEM

LCD-160G160B Datasheet (132.20 KB)

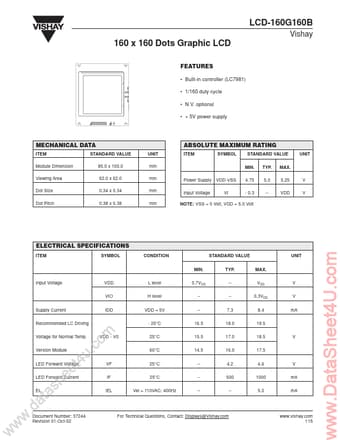

Preview of LCD-160G160B PDF

Datasheet Details

Part number:

LCD-160G160B

Manufacturer:

Vishay ↗ Intertechnology

File Size:

132.20 KB

Description:

160 x 160 dots graphic lcd.
