LCD-160G128B

160 x 128 Dots Graphic LCD

LCD-160G128B Features

* Built in controller TOSHIBA-(T6963C or equivalent)

* + 5V power supply

* 1/28 duty cycle

* N.V. optional

* Built in CCFL inverter MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch Mounting Hole STANDARD VALUE 129.0 x 102.0 101.0 x 82.0 0

LCD-160G128B Datasheet (130.95 KB)

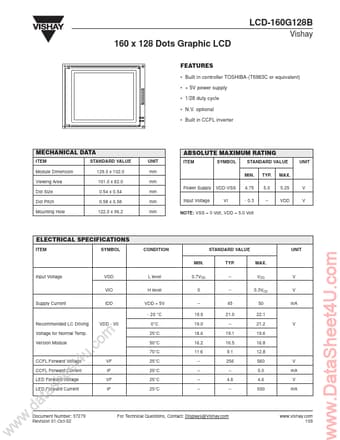

Preview of LCD-160G128B PDF

Datasheet Details

Part number:

LCD-160G128B

Manufacturer:

Vishay ↗ Intertechnology

File Size:

130.95 KB

Description:

160 x 128 dots graphic lcd.
