LCD160G160B, LCD-160G160B - 160 x 160 Dots Graphic LCD

LCD160G160B Description

LCD-160G160B Vishay 160 x 160 Dots Graphic LCD .

LCD160G160B Features

* Built-in controller (LC7981)
* 1/160 duty cycle
* N. V. optional
* + 5V power supply MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch STANDARD VALUE 85.0 x 100.0 62.0 x 62.0 0.34 x 0.34 0.38 x 0.38 UNIT mm mm mm mm ABSOLUTE MAXIMUM RATING ITEM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCD160G160B, LCD-160G160B. Please refer to the document for exact specifications by model.

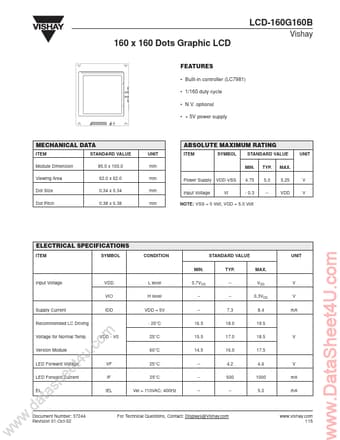

datasheet Preview Page 2

Datasheet Details

Part number
LCD160G160B, LCD-160G160B
Manufacturer
Vishay ↗ Intertechnology
File Size
132.20 KB
Datasheet
LCD-160G160B_VishayIntertechnology.pdf
Description
160 x 160 Dots Graphic LCD
Note
This datasheet PDF includes multiple part numbers: LCD160G160B, LCD-160G160B.
Please refer to the document for exact specifications by model.
