LCD160G128C, LCD-160G128C - 160 x 128 Dots Graphic LCD

LCD160G128C Description

LCD-160G128C Vishay 160 x 128 Dots Graphic LCD .

LCD160G128C Features

* Built in controller TOSHIBA-(T6963C or equivalent)
* + 5V power supply
* 1/28 duty cycle
* N. V. optional
* Built in CCFL inverter MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch Mounting Hole STANDARD VALUE 150.0 x 112.0 101.0 x 82.0 0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCD160G128C, LCD-160G128C. Please refer to the document for exact specifications by model.

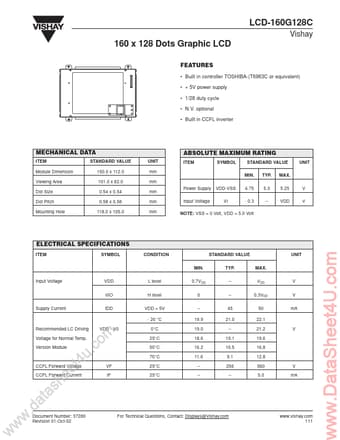

datasheet Preview Page 2

Datasheet Details

Part number
LCD160G128C, LCD-160G128C
Manufacturer
Vishay ↗ Intertechnology
File Size
132.35 KB
Datasheet
LCD-160G128C_VishayIntertechnology.pdf
Description
160 x 128 Dots Graphic LCD
Note
This datasheet PDF includes multiple part numbers: LCD160G128C, LCD-160G128C.
Please refer to the document for exact specifications by model.
