LCD160G160A, LCD-160G160A - 160 x 160 Dots Graphic LCD

LCD160G160A Description

LCD-160G160A Vishay 160 x 160 Dots Graphic LCD .

LCD160G160A Features

* No Built-in controller
* + 5V power supply
* 1/160 duty cycle
* 4-Bit parallel or 1-Bit serial interface mode MECHANICAL DATA ITEM Module Dimension Viewing Area Dot Size Dot Pitch STANDARD VALUE 89.2 x 85.0 62.0 x 62.0 0.34 x 0.34 0.38 x 0.38 UNIT mm mm mm mm ABSO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LCD160G160A, LCD-160G160A. Please refer to the document for exact specifications by model.

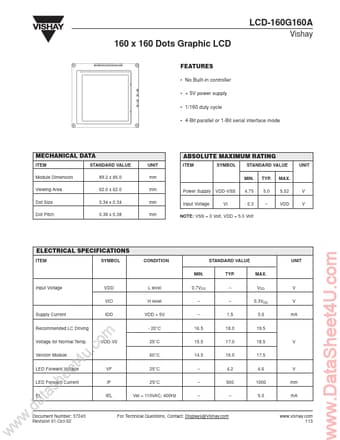

datasheet Preview Page 2

Datasheet Details

Part number
LCD160G160A, LCD-160G160A
Manufacturer
Vishay ↗ Intertechnology
File Size
128.87 KB
Datasheet
LCD-160G160A_VishayIntertechnology.pdf
Description
160 x 160 Dots Graphic LCD
Note
This datasheet PDF includes multiple part numbers: LCD160G160A, LCD-160G160A.
Please refer to the document for exact specifications by model.
