PAM10ST2303C - 500 WATT TVS ARRAY

PAM10ST2303C Description

05354 Only One Name Means ProTek’Tion™ 500 WATT TVS ARRAY PAM10ST23xxC Series .
The PAM10ST23xxC Series are transient voltage suppressor (TVS) arrays, designed for automotive applications that provide protection against ESD, terti.

PAM10ST2303C Features

* AEC-Q101 Qualified
* Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV
* Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line)
* 500 Watts Peak Pulse

PAM10ST2303C Applications

* that provide protection against ESD, tertiary lightning and switching transients. These devices offer low clamping voltage for the protection of sensitive interfaces. The PAM10ST23xxC Series has a peak pulse power of 500 Watts for an 8/20µs waveshape and is available in a bidirectional configuration

📥 Download Datasheet

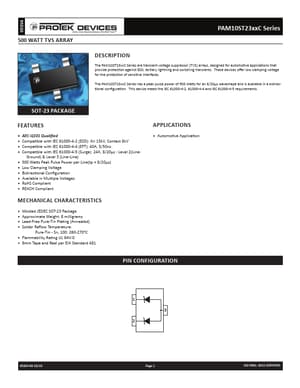

Preview of PAM10ST2303C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM10ST2303C
Manufacturer
Protek Devices
File Size
500.16 KB
Datasheet
PAM10ST2303C-ProtekDevices.pdf
Description
500 WATT TVS ARRAY
