PAM10ST2315C 500 WATT TVS ARRAY

The PAM10ST23xxC Series are transient voltage suppressor (TVS) arrays, designed for automotive applications that provide protection against ESD, tertiary lightning and switching transients. These devices offer low clamping voltage for the protection of sensitive interfaces. The PAM10ST23xxC Series h.

PAM10ST2315C Features

* AEC-Q101 Qualified

* Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line)

* 500 Watts Peak Pulse

PAM10ST2303C-ProtekDevices.pdf

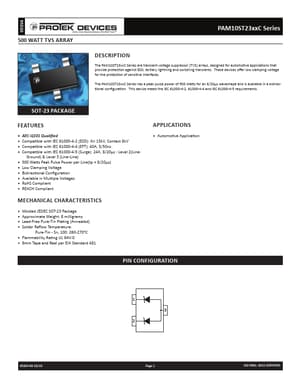

PAM10ST2315C Datasheet Preview — This datasheet PDF includes multiple part numbers: PAM10ST2315C, PAM10ST2303C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PAM10ST2315C, PAM10ST2303C

Manufacturer:

Protek Devices

File Size:

500.16 KB

Description:

500 watt tvs array.

Note:

This datasheet PDF includes multiple part numbers: PAM10ST2315C, PAM10ST2303C.
Please refer to the document for exact specifications by model.
