SM30KPA28AN

30kW SURFACE MOUNT POWER TVS COMPONENT

SM30KPA28AN Features

* RTCA DO-160G COMPLIANT PRODUCT

* Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs - L3(Line- Ground), L4(Line-Line) & L1 (Power)

* 30,000 Watts Peak Pulse Power per Line (tp = 10/1000µs)

* Unidirectional and Bidirectional Configurations

* Easy Mountin

SM30KPA28AN General Description

The SM30KPAN Series are high-powered surface mount transient voltage suppression components designed to protect equipment and systems from the damaging effects of high voltage spikes. The surface mount package configuration provides a lower profile compared to legacy axial lead package configuration.

SM30KPA28AN Datasheet (408.77 KB)

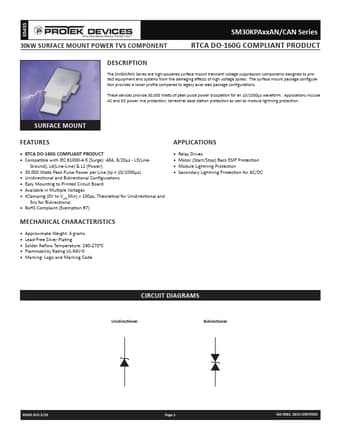

Preview of SM30KPA28AN PDF

Datasheet Details

Part number:

SM30KPA28AN

Manufacturer:

Protek Devices

File Size:

408.77 KB

Description:

30kw surface mount power tvs component.
