SMDA24-6

300 WATT MULTI-LINE TVS ARRAY

SMDA24-6 Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line- Gnd) & Level 2(Line-Line)

* 300 Watts Peak Pulse Power per Line (tp = 8/20µs)

SMDA24-6 General Description

The SMDAxx-6 series are monolithic transient voltage suppressor arrays that provides board level protection for standard TTL and MOS bus line applications against the damaging effects of ESD, tertiary lightning and switching transients. The SMDAxx-6 series has a peak pulse power rating of 300 Watts .

SMDA24-6 Datasheet (304.23 KB)

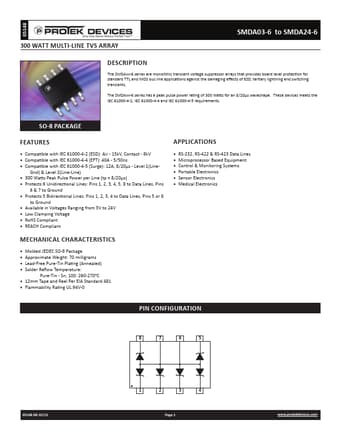

Preview of SMDA24-6 PDF

Datasheet Details

Part number:

SMDA24-6

Manufacturer:

Protek Devices

File Size:

304.23 KB

Description:

300 watt multi-line tvs array.
