STF701 Datasheet - Protek Devices

STF701 EMI FILTER/TVS ARRAY

05129 STF701 Only One Name Means ProT ek’Tion™ EMI FIL TER/TVS ARRA Y APPLICA TIONS ✔ Cellular Phones ✔ SMART Cards ✔ Notebooks ✔ Personal Digital Assistant (PDA) ✔ Ground Positioning System (GPS) IEC COMPA TIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns FEA TURES ✔ ESD Protection > 25 kilovolts ✔ 175 Watts Peak Pulse Power per Line (tp = 8/20µs) ✔ Bidirectional EMI Filtering ✔ Low Insertion Loss: Up to 10MHz, -3db Roll-Off @ 40MHz ✔ Protects U.

STF701 Datasheet (141.78 KB)

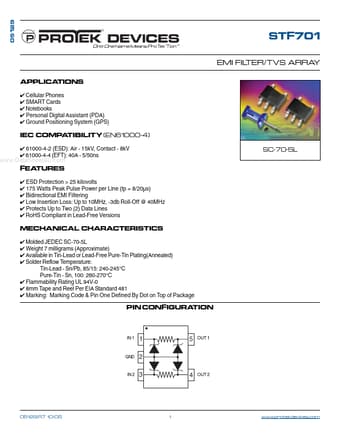

Preview of STF701 PDF
STF701 Datasheet Preview Page 2 STF701 Datasheet Preview Page 3

Datasheet Details

Part number:

STF701

Manufacturer:

Protek Devices

File Size:

141.78 KB

Description:

Emi filter/tvs array.
