VSMF05LCC

MULTI-LINE LOW CAPACITANCE TVS ARRAY

VSMF05LCC Features

* Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns

* 25 Watts Peak Pulse Power per Line(tp = 8/20µs)

* Monolithic Design

* Available in 5 Volts

* Low Clamping Voltage

* ESD Pro

VSMF05LCC General Description

The VSMF05LCC is a 5 Volt, low capacitance, multi-line TVS array. This device is designed to protect wireless telecommunications and portable electronic applications from the damaging effects of ESD and EFT. The VSMF05LCC is available in a 5 line unidirectional or 4 line bidirectional configuration .

VSMF05LCC Datasheet (404.04 KB)

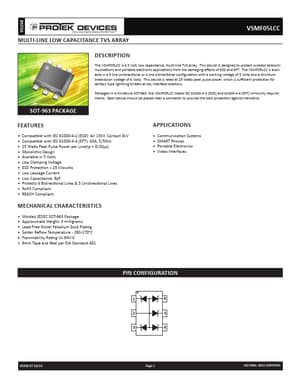

Preview of VSMF05LCC PDF

Datasheet Details

Part number:

VSMF05LCC

Manufacturer:

Protek Devices

File Size:

404.04 KB

Description:

Multi-line low capacitance tvs array.
