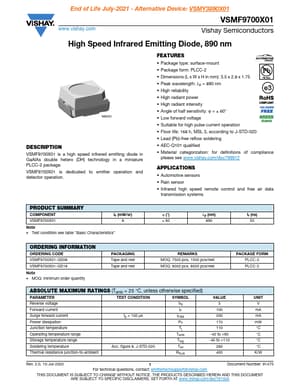

datasheet Preview Page 1 from Datasheet4u.com

VSMF9700X01 High Speed Infrared Emitting Diode

End of Life July-2021 - Alternative Device: VSMY3890X01 www.vishay.com VSMF9700X01 Vishay Semiconductors High Speed Infrared Emitting Diode, 890 nm.
VSMF9700X01 is a high speed infrared emitting diode in GaAlAs double hetero (DH) technology in a miniature PLCC-2 package.

VSMF9700X01-Vishay.pdf

VSMF9700X01 Datasheet Preview — Preview of VSMF9700X01 PDF

Datasheet Details

Part number:

VSMF9700X01

Manufacturer:

Vishay ↗

File Size:

140.71 KB

Description:

High Speed Infrared Emitting Diode

Features

* Package type: surface-mount
* Package form: PLCC-2
* Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75
* Peak wavelength: λp = 890 nm
* High reliability
* High radiant power
* High radiant intensity
* Angle of half sensitivity: ϕ = ± 60°

Applications

* Automotive sensors
* Rain sensor
* Infrared high speed remote control and free air data transmission systems PRODUCT SUMMARY COMPONENT VSMF9700X01 Ie (mW/sr) 8 ϕ (°) ± 60 Note
* Test condition see table “Basic Characteristics” λp (nm) 890 tr (ns) 50 ORDERING
