VSMB2000X01 - High Speed Infrared Emitting Diodes

Vishay

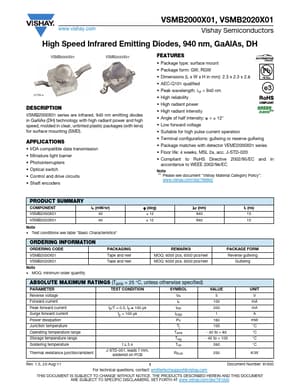

VSMB2000X01 Datasheet Preview — Preview of VSMB2000X01 PDF

Datasheet Details

Part number	VSMB2000X01
Manufacturer	Vishay ↗
File Size	146.36 KB
Description	High Speed Infrared Emitting Diodes
Datasheet	VSMB2000X01-Vishay.pdf

VSMB2000X01 Product details

Description

VSMB2000X01 series are infrared, 940 nm emitting diodes in GaAlAs (DH) technology with high radiant power and high speed, molded in clear, untinted plastic packages (with lens) for surface mounting (SMD).

Features

Package type: surface mount.
Package form: GW, RGW.
Dimensions (L x W x H in mm): 2.3 x 2.3 x 2.8.
AEC-Q101 qualified.
Peak wavelength:.
p = 940 nm.
High reliability.
High radiant power.
High radiant intensity.
Angle of half intensity:  = ± 12°.
Low forward voltage.
Suitable for high pulse current operation.
Terminal configurations: gullwing or reserve gullwing.
Package matc.
