VSM012N06HS

N-Channel Advanced Power MOSFET

VSM012N06HS Features

* N-Channel，Logic Level 10V

* Enhancement mode

* Very low on-resistance

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSM012N06HS 60V/55A N-Channel Advanced Power MOSFET V DS 60 V R @DS(on),TYP VGS=10 V 8.5 mΩ I D 55 A TO-263 Part ID

VSM012N06HS Datasheet (354.89 KB)

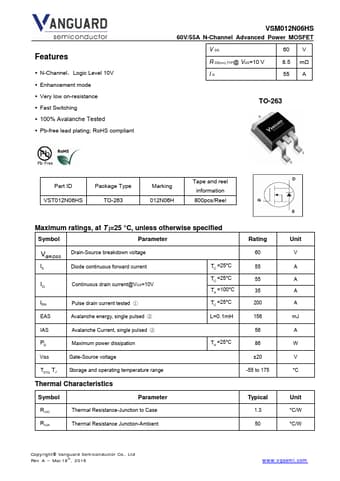

Preview of VSM012N06HS PDF

Datasheet Details

Part number:

VSM012N06HS

Manufacturer:

Vanguard Semiconductor

File Size:

354.89 KB

Description:

N-channel advanced power mosfet.
