VSMA1085600X02 Datasheet, Diode, Vishay

VSMA1085600X02 Features

  • Diode a double stack emitter chip for highest radiant power. The 42 mil chip size allows 1.5 A DC operation and supports pulsed currents up to 5.0 A. FEATURES
  • Package type: surface

PDF File Details

Part number:

VSMA1085600X02

Manufacturer:

Vishay ↗

File Size:

199.49kb

Download:

📄 Datasheet

Description:

High power infrared emitting diode. As part of the Astral portfolio, the VSMA1085600X02 is an infrared, 850 nm emitting diode. It features a double stack emitter chip fo

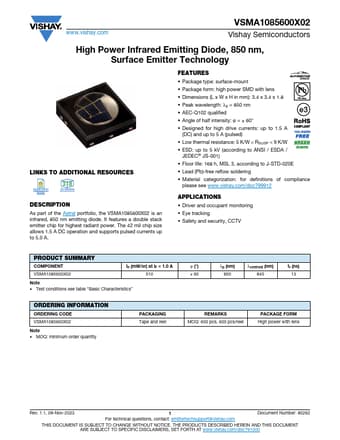

Datasheet Preview: VSMA1085600X02 📥 Download PDF (199.49kb)
Page 2 of VSMA1085600X02 Page 3 of VSMA1085600X02

VSMA1085600X02 Application

  • Applications
  • Driver and occupant monitoring
  • Eye tracking
  • Safety and security, CCTV PRODUCT SUMMARY COMPONENT VSMA108
