VSMA1085250 High Power Infrared Emitting Diode

www.vishay.com VSMA1085250 Vishay Semiconductors High Power Infrared Emitting Diode, 850 nm, Surface Emitter Technology LINKS TO ADDITIONAL RESOURC.
As part of the SurfLightTM portfolio, the VSMA1085250 is an infrared, 850 nm emitting diode.

VSMA1085250-Vishay.pdf

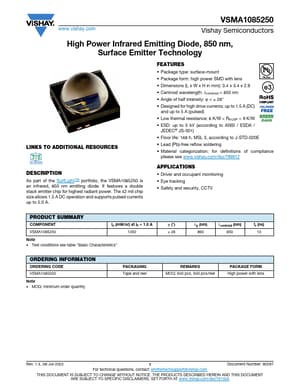

VSMA1085250 Datasheet Preview — Preview of VSMA1085250 PDF

Datasheet Details

Part number:

VSMA1085250

Manufacturer:

Vishay ↗

File Size:

194.62 KB

Description:

High Power Infrared Emitting Diode

Features

* a double stack emitter chip for highest radiant power. The 42 mil chip size allows 1.5 A DC operation and supports pulsed currents up to 5.0 A. FEATURES
* Package type: surface-mount
* Package form: high power SMD with lens
* Dimensions (L x W x H in mm): 3.4 x 3.4 x 2.9

Applications

* Driver and occupant monitoring
* Eye tracking
* Safety and security, CCTV PRODUCT SUMMARY COMPONENT VSMA1085250 Ie (mW/sr) at IF = 1.0 A 1350 ϕ (°) ± 28 Note
* Test conditions see table “Basic Characteristics” λp (nm) 860 λcentroid (nm) 850 tr (ns) 10 ORDERI
