VSMB10940 - High Speed Infrared Emitting Diode

Vishay

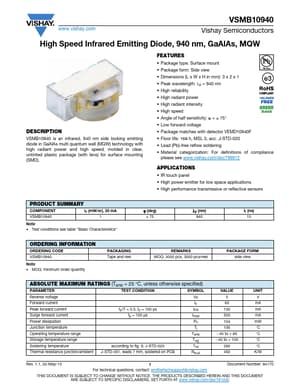

VSMB10940 Datasheet Preview — Preview of VSMB10940 PDF

Datasheet Details

Part number	VSMB10940
Manufacturer	Vishay ↗
File Size	293.46 KB
Description	High Speed Infrared Emitting Diode
Datasheet	VSMB10940-Vishay.pdf

VSMB10940 Product details

Description

VSMB10940 is an infrared, 940 nm side looking emitting diode in GaAlAs multi quantum well (MQW) technology with high radiant power and high speed, molded in clear, untinted plastic package (with lens) for surface mounting (SMD).

Features

Package type: Surface mount.
Package form: Side view.
Dimensions (L x W x H in mm): 3 x 2 x 1.
Peak wavelength:.
p = 940 nm.
High reliability.
High radiant power.
High radiant intensity.
High speed.
Angle of half sensitivity:  = ± 75°.
Low forward voltage.
Package matches with detector VEMD10940F.
Floor life: 168 h, MSL 3, acc. J-STD-020.
Lead (Pb)-free reflow soldering.
