VSM012N12MS

N-Channel Advanced Power MOSFET

VSM012N12MS Features

* N-Channel,5V Logic Level Control

* Enhancement mode

* Fast Switching

* Very low on-resistance RDS(on) @ VGS=4.5 V

* 100% Avalanche test

* Pb-free lead plating; RoHS compliant VSM012N12MS 120V/63A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VG

VSM012N12MS Datasheet (406.69 KB)

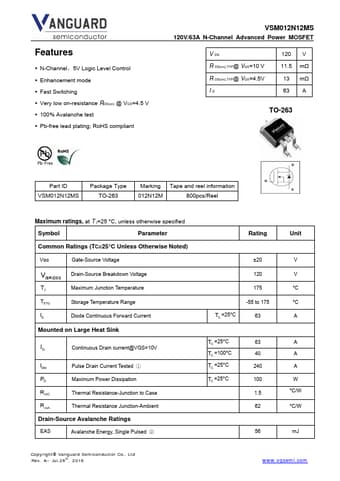

Preview of VSM012N12MS PDF

Datasheet Details

Part number:

VSM012N12MS

Manufacturer:

Vanguard Semiconductor

File Size:

406.69 KB

Description:

N-channel advanced power mosfet.
