H1013 Datasheet - Pulse

H1013 10/100BASE-TX SINGLE PORT TRANSFORMER MODULES

10/100BASE-TX SINGLE PORT TRANSFORMER MODULES With Various Transmit Turns Ratios RoHS-5 peak reflow temperature rating 235°C RoHS-6 peak reflow temperature rating 245°C Meets IEEE 802.3 specification Designed for use with transceivers for AMD & Micrel Electrical Specifications @ 25°C Operating Temperature 0°C to 70°C RoHS-5 3 RoHS-6 4 Compliant Compliant Part Part Number Number Turns Ratio (±5%) TX RX Insertion Loss (db MAX) 100 KHz-100 MHz Return Loss (db MIN) 30 MHz 60 MHz .

H1013-Pulse.pdf

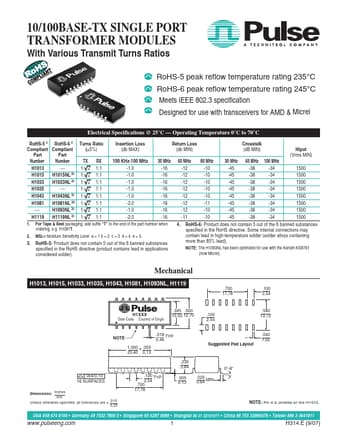

Preview of H1013 PDF
H1013 Datasheet Preview Page 2

Datasheet Details

Part number:

H1013

Manufacturer:

Pulse

File Size:

78.66 KB

Description:

10/100base-tx single port transformer modules.
