H1015 Datasheet - SHANTOU HUASHAN ELECTRONIC DEVICES

H1015 PNP SILICON TRANSISTOR

Shantou Huashan Electronic Devices Co.,Ltd. P NP S I L I C O N T R A N S I S T O R H1015 AUDIO FREQUENCY AMPLIFIER HIGH FREQUENCY OSC ABSOLUTE MAXIMUM RATINGS（Ta=25℃） TO-92 Tstg Storage Temperature………………………… -55~150℃ Tj Junction Temperature…………………………………150℃ PC Collector Dissipation…………………………………400mW VCBO Collector-Base Voltage………………………………-50V VCEO Collector-Emitter Voltage……………………………-50V VEBO .

H1015 Datasheet (101.90 KB)

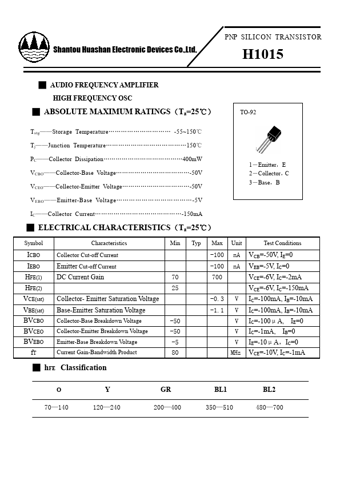

Preview of H1015 PDF

Datasheet Details

Part number:

H1015

Manufacturer:

SHANTOU HUASHAN ELECTRONIC DEVICES

File Size:

101.90 KB

Description:

Pnp silicon transistor.
