P8205 SMT CURRENT SENSE TRANSFORMERS

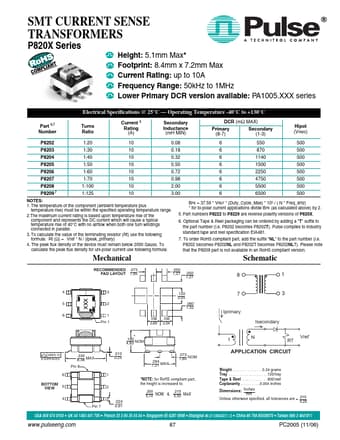

SMT CURRENT SENSE TRANSFORMERS P820X Series Height: 5.1mm Max Footprint: 8.4mm x 7.2mm Max Current Rating: up to 10A Frequency Range: 50kHz to 1MHz Lower Primary DCR version available: PA1005.XXX series Electrical Specifications @ 25°C Operating Temperature -40°C to +130°C Part 6,7 Number Turns Ratio Current 2 Rating (A) Secondary Inductance (mH MIN) DCR (mΩ MAX) Primary (8-7) Secondary (1-3) Hipot (VRMS) P8202 1:20 10 0.08 6 550 500 P8203 1:30 10 0.18 6 870 500.

P8202-Pulse.pdf

P8205 Datasheet Preview — This datasheet PDF includes multiple part numbers: P8205, P8202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P8205, P8202

Manufacturer:

Pulse

File Size:

73.03 KB

Description:

Smt current sense transformers.

Note:

This datasheet PDF includes multiple part numbers: P8205, P8202.
Please refer to the document for exact specifications by model.
