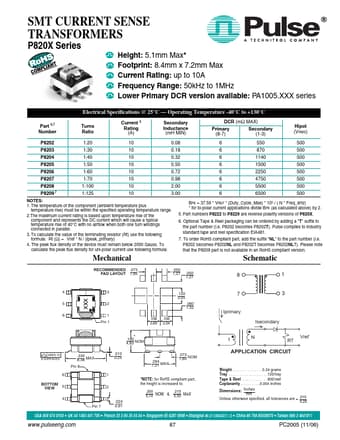

SMT CURRENT SENSE TRANSFORMERS P820X Series Height: 5.1mm Max Footprint: 8.4mm x 7.2mm Max Current Rating: up to 10A Frequency Range: 50kHz to 1MHz Lower Primary DCR version available: PA1005.XXX series Electrical Specifications @ 25°C Operating Temperature -40°C to +130°C Part 6,7 Number Turns Ratio Current 2 Rating (A) Secondary Inductance (mH MIN) DCR (mΩ MAX) Primary (8-7) Secondary (1-3) Hipot (VRMS) P8202 1:20 10 0.08 6 550 500 P8203 1:30 10 0.18 6 870 500
Datasheet Details
Part number:
P8206, P8202
Manufacturer:
Pulse
File Size:
73.03 KB
Description:
Smt current sense transformers.
