PA2240.332NLT Datasheet - Pulse

PA2240.332NLT - SMT Power Inductor

SMT Power Inductors High Current Composite Inductor - PA2240XXXNLT and PM2240.XXXNLT Height: 7.0mm Max Footprint: 8.05mm x 7.85mm Max PRELIMINARY Current Rating: up to 15.1Arms Inductance Range: 3.3uH to 6.8uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Available in Commercial (PA2240) and Automotive (PM2240) grades Electrical Specifications @ 25°C, Operating Temperature Range per Below4,5 Part Number Commerical Aut

PA2240.332NLT-Pulse.pdf

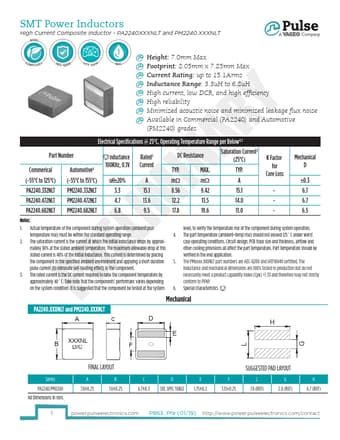

Preview of PA2240.332NLT PDF
PA2240.332NLT Datasheet Preview Page 2 PA2240.332NLT Datasheet Preview Page 3

Datasheet Details

Part number:

PA2240.332NLT

Manufacturer:

Pulse

File Size:

1.00 MB

Description:

Smt power inductor.
