PA20-16-1PD3 Datasheet - Logical Systems

PA20-16-1PD3 20 pin PLCC Auto-eject Dead-Bug socket

PA20-16-1PD(Z)3(6) Data Sheet 20 pin PLCC Auto-eject Dead-Bug socket/16 pin DIP 0.3” or (0.6") plug or 20 pin PLCC (Lidded ZIF Live-Bug) socket/16 pin DIP 0.3" or (0.6") plug Supported Device/Footprints These adapters allow programming of many 20 pin PLCC and CLCC devices in their 16 pin DIP footprint. Following is a partial list. Mfgr Several AMD Device Device Package 74S288 20 pin PLCC AM2719 " Footprint Device Package 74S288 16 Pin DIP AM2719 " Adapter Part Numbers The following chart identi.

PA20-16-1PD3 Datasheet (27.07 KB)

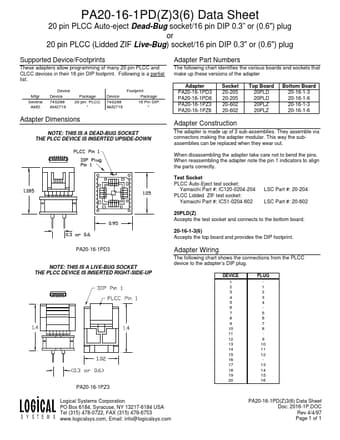

Preview of PA20-16-1PD3 PDF

Datasheet Details

Part number:

PA20-16-1PD3

Manufacturer:

Logical Systems

File Size:

27.07 KB

Description:

20 pin plcc auto-eject dead-bug socket.
