PA2009 - 10 +10W STEREO AMPLIFIER

PA2009 Description

UNISONIC TECHNOLOGIES CO., LTD PA2009 LINEAR INTEGRATED CIRCUIT 10 +10W STEREO AMPLIFIER * .
The UTC PA2009 is a class AB stereo audio power amplifier that contains two identical amplifiers capable of delivering 10W per channel.

PA2009 Features

* Supply range 8V ~ 28V
* High power outputs (10W/Channel)
* High output current up to 3.5A
* Short circuit protection
* Thermal protection
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free PA2009L-J11-A-T PA2009G-J11-A-T Package HZIP-11A HZIP-11A Packing

📥 Download Datasheet

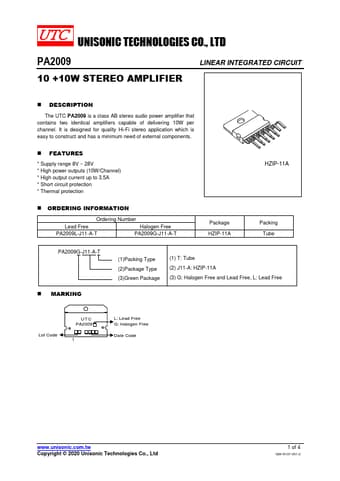

Preview of PA2009 PDF
