PA2247.562NLT, PA2247.472NLT Datasheet - Pulse

PA2247.562NLT SMT Power Inductor

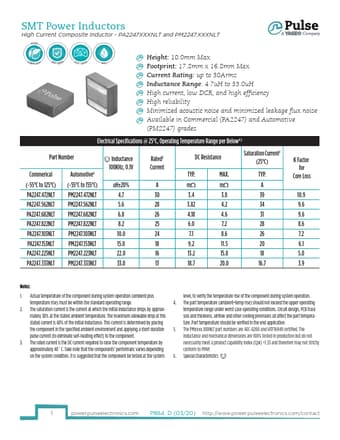

SMT Power Inductors High Current Composite Inductor - PA2247XXXNLT and PM2247.XXXNLT Height: 10.0mm Max Footprint: 17.8mm x 16.8mm Max Current Rating: up to 30Arms Inductance Range: 4.7uH to 33.0uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Available in Commercial (PA2247) and Automotive (PM2247) grades Electrical Specifications @ 25°C, Operating Temperature Range per Below4,5 Part Number Commerical (-55°C to 125°C) P.

PA2247.472NLT-Pulse.pdf

This datasheet PDF includes multiple part numbers: PA2247.562NLT, PA2247.472NLT. Please refer to the document for exact specifications by model.
PA2247.562NLT Datasheet Preview Page 2 PA2247.562NLT Datasheet Preview Page 3

Datasheet Details

Part number:

PA2247.562NLT, PA2247.472NLT

Manufacturer:

Pulse

File Size:

1.21 MB

Description:

Smt power inductor.

Note:

This datasheet PDF includes multiple part numbers: PA2247.562NLT, PA2247.472NLT.
Please refer to the document for exact specifications by model.
