PA5001.122NLT, PA5001.101NLT Datasheet - Pulse

PA5001.122NLT SMT Power Inductors

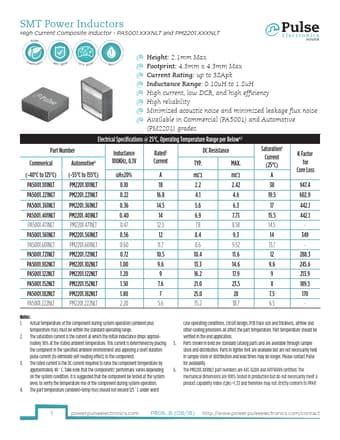

SMT Power Inductors High Current Composite Inductor - PA5001.XXXNLT and PM2201.XXXNLT Height: 2.1mm Max Footprint: 4.3mm x 4.3mm Max Current Rating: up to 38Apk Inductance Range: 0.10uH to 1.8uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Available in Commercial (PA5001) and Automotive (PM2201) grades Electrical Specifications @ 25°C, Operating Temperature Range per Below4,5 Part Number Commerical (-40°C to 125°C) Aut.

PA5001.101NLT-Pulse.pdf

This datasheet PDF includes multiple part numbers: PA5001.122NLT, PA5001.101NLT. Please refer to the document for exact specifications by model.
PA5001.122NLT Datasheet Preview Page 2 PA5001.122NLT Datasheet Preview Page 3

Datasheet Details

Part number:

PA5001.122NLT, PA5001.101NLT

Manufacturer:

Pulse

File Size:

690.53 KB

Description:

Smt power inductors.

Note:

This datasheet PDF includes multiple part numbers: PA5001.122NLT, PA5001.101NLT.
Please refer to the document for exact specifications by model.
