PH9185.012NL Datasheet - Pulse

PH9185.012NL Switch Mode Transformers

Switch Mode Transformers EP7 Platform SMD Push Pull Converter Transformer Reinforced insulation for isolated power supply driver Compatible with MAXIM™ MAX253 to power RS-485/RS232 transceiver 8mm creepage, 4000V Hi-pot UL and TUV certification UL class F insulation System compliant Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C Part 2, 3 Number PH9185.011NL PH9185.012NL PH9185.013NL PH9185.021NL PH9185.034NL PH9185.038NL PH9185.043NL PH9185.083NL Inductance (1-3) (µH .

PH9185.012NL Datasheet (327.59 KB)

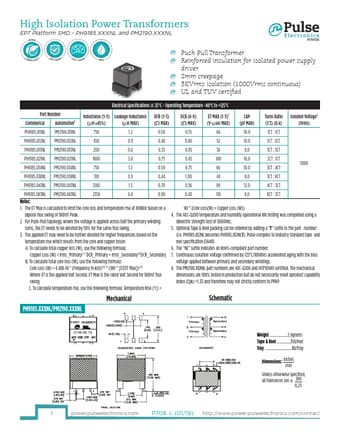

Preview of PH9185.012NL PDF
PH9185.012NL Datasheet Preview Page 2

Datasheet Details

Part number:

PH9185.012NL

Manufacturer:

Pulse

File Size:

327.59 KB

Description:

Switch mode transformers.
