PM4547 High Current Molded Power Inductor

SMT Power Inductors High Current Molded Power Inductor - PA4547 & PM4547 Series Height: 1.5mm Max Footprint: 3.8mm x 3.4mm Max Current Rating: up to 7.0A Inductance Range: 0.22uH to 10.0uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Commercial5,6 PA4547.221NLT PA4547.471NLT PA4547.561NLT PA4547.681NLT PA4547.102NLT PA4547.152NLT PA4547.222NLT PA4547.332NLT PA4547.472NLT PA4547.562NLT PA4547.682NLT PA4547.822NLT PA4547.10.

PM4547 Datasheet (428.68 KB)

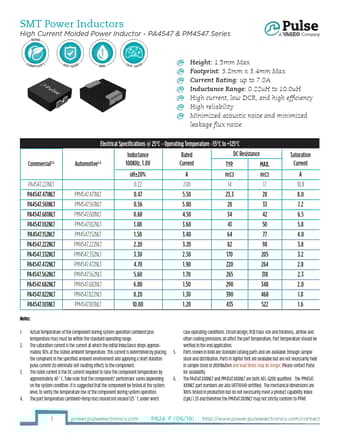

PM4547 Datasheet Preview — Preview of PM4547 PDF

Datasheet Details

Part number:

PM4547

Manufacturer:

Pulse

File Size:

428.68 KB

Description:

High current molded power inductor.
