PM4575J - Silicon N-Channel Power MOS FET Module

Hitachi Semiconductor

📥 Download Datasheet

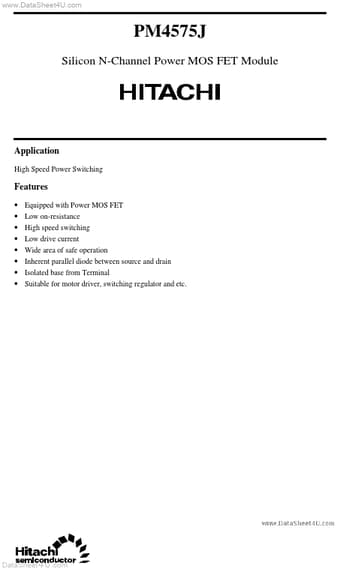

PM4575J Datasheet Preview — Preview of PM4575J PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: PM4575J
Manufacturer: Hitachi Semiconductor
File Size: 203.62 KB
Datasheet: PM4575J_HitachiSemiconductor.pdf
Description: Silicon N-Channel Power MOS FET Module

PM4575J Product details

Features

Equipped with Power MOS FET Low on-resistance High speed switching Low drive current Wide area of safe operation Inherent parallel diode between source and drain Isolated base from Terminal Suitable for motor driver, switching regulator and etc. DataSheet 4 U . com www. DataSheet4U. com PM4575J Outline LF-J D1 S2 S1/D2 G2 S2 S1 G1 Equivalent Circuit D1 G1 S1 S1/D2 G2 S2 No S1 D1 S2 D2 G1 S1 G2 S2 Electrode Source.
