T1104 Datasheet - Pulse

T1104 T1/E1/CEPT/ISDN-PRI TRANSFORMERS

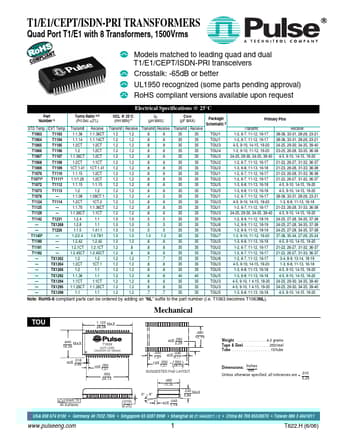

T1/E1/CEPT/ISDN-PRI TRANSFORMERS Quad Port T1/E1 with 8 Transformers, 1500Vrms Models matched to leading quad and dual T1/E1/CEPT/ISDN-PRI transceivers Crosstalk: -65dB or better UL1950 recognized (some parts pending approval) RoHS compliant versions available upon request Electrical Specifications @ 25°C Part Number G STD Temp. EXT Temp. T1063 T1103 Turns Ratio A,B (Pri:Sec ±2%) Transmit Receive 1:1.36 1:1.36CT OCL @ 25°C (mH MIN) F LL (µH MAX) CW/W (pF MAX) Package/ Schematic E Transm.
