P25C08H_Auto - Automotive 8-Kbit Serial SPI bus EEPROM

Product Overview

Puya

📥 Download Datasheet

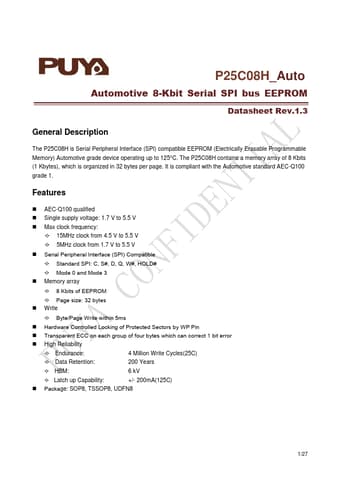

P25C08H_Auto Automotive 8-Kbit Serial SPI bus EEPROM by Puya - Datasheet Preview — Datasheet preview – P25C08H_Auto

Datasheet Details

Part number	P25C08H_Auto
Manufacturer	Puya
File Size	1.22 MB
Description	Automotive 8-Kbit Serial SPI bus EEPROM
Datasheet	P25C08H_Auto Datasheet
Additional preview pages of the P25C08H_Auto datasheet.

Product details

Description

The P25C08H is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) Automotive grade device operating up to 125°C.

Features

AEC-Q100 qualified.
Single supply voltage: 1.7 V to 5.5 V.
Max clock frequency:.
15MHz clock from 4.5 V to 5.5 V.
5MHz clock from 1.7 V to 5.5 V.
Serial Peripheral Interface (SPI) Compatible.
Standard SPI: C, S#, D, Q, W#, HOLD#.
Mode 0 and Mode 3.
Memory array.
8 Kbits of EEPROM.
Page size: 32 bytes.
Write.
Byte/Page Write within 5ms.
Hardware Controlled Locking of Protected Sectors by WP Pin.
Transparent EC.
