P25C16H - 16-Kbit Serial SPI bus EEPROM

Puya

📥 Download Datasheet

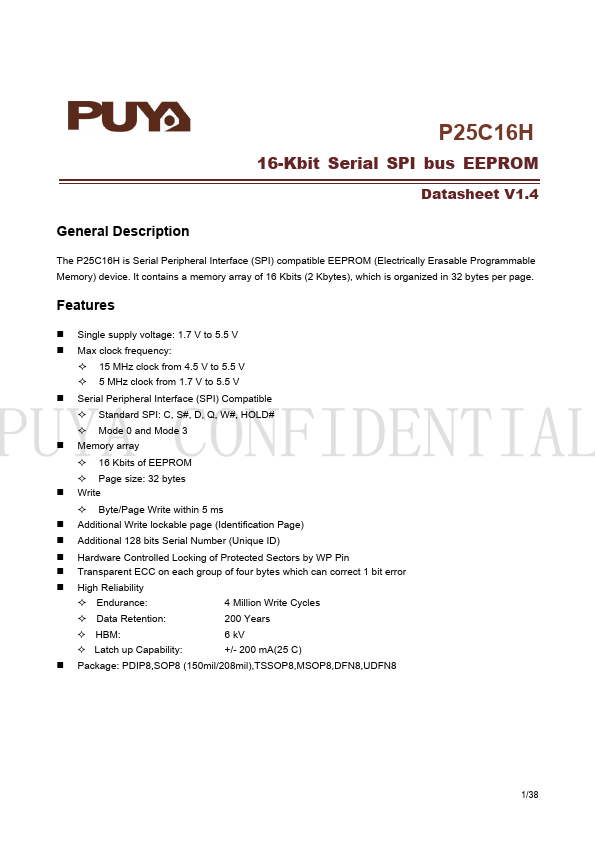

P25C16H Datasheet Preview — Preview of P25C16H PDF

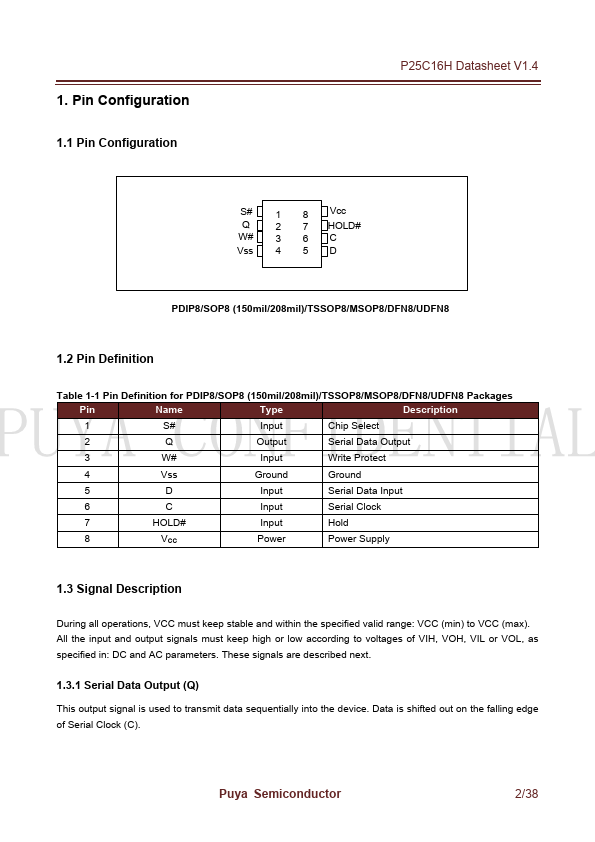

datasheet Preview Page 2

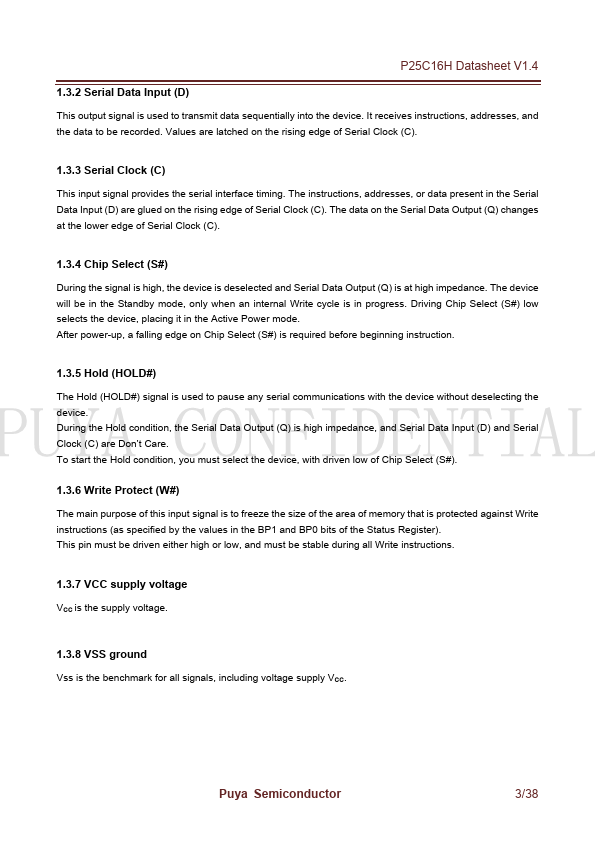

datasheet Preview Page 3

Datasheet Details

Part number	P25C16H
Manufacturer	Puya
File Size	589.23 KB
Description	16-Kbit Serial SPI bus EEPROM
Datasheet	P25C16H-Puya.pdf

P25C16H Product details

Description

The P25C16H is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) device.

Features

Single supply voltage: 1.7 V to 5.5 V.
Max clock frequency:.
15 MHz clock from 4.5 V to 5.5 V.
5 MHz clock from 1.7 V to 5.5 V.
Serial Peripheral Interface (SPI) Compatible.
Standard SPI: C, S#, D, Q, W#, HOLD#.
Mode 0 and Mode 3.
Memory array.
16 Kbits of EEPROM.
Page size: 32 bytes.
Write.
Byte/Page Write within 5 ms.
Additional Write lockable page (Identification Page).
Additional 128 bits Serial Number (Unique.
