QLA1061-64A0 Datasheet, Package, QD Laser

QLA1061-64A0 Features

  • Package High fiber output power >100mW Single longitudinal mode operation at 1064, 1122 and 1188nm Fiber-pigtailed 14-pin butterfly package with a TEC Optical isolator integration Polarization

PDF File Details

Part number:

QLA1061-64A0

Manufacturer:

QD Laser

File Size:

254.58kb

Download:

📄 Datasheet

Description:

100mw dfb/soa laser diode butterfly package. The QLA1x61-xxA0 is a distributed feedback (DFB) laser with integrated semiconductor optical amplifier (SOA) for use in seeder and se

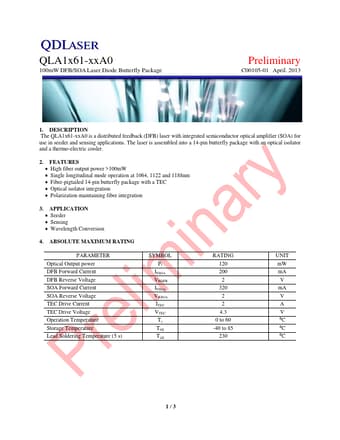

Datasheet Preview: QLA1061-64A0 📥 Download PDF (254.58kb)
Page 2 of QLA1061-64A0 Page 3 of QLA1061-64A0

QLA1061-64A0 Application

  • Applications The laser is assembled into a 14-pin butterfly package with an optical isolator and a thermo-electric cooler. 2.
  • <
