TSD15

Thermopile Temperature Sensor

TSD15 Features

* Non-contact surface temperature measuring

* TO housing with an F5.5 infrared filter

* Using NTC thermistor for ambient temperature compensation

* Suitable for human body temperature detecting and Industrial temperature measurement

* Fast response time

* High sensitivity Ap

TSD15 General Description

The TSD15 is a thermopile temperature sensor based on MEMS (Micro-ElectroMechanical Systems) technology. This thermopile detector consists of a thermopile MEMS chip, an F5.5 infrared band pass filter, a NTC thermistor for temperature compensation and a small size TO-46 package. Table 1 Thermopile .

TSD15 Datasheet (298.10 KB)

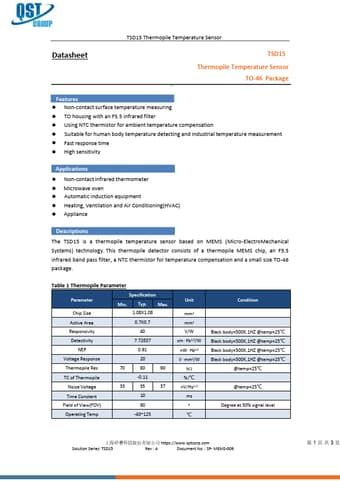

TSD15 Datasheet Preview — Preview of TSD15 PDF

Datasheet Details

Part number:

TSD15

Manufacturer:

QST

File Size:

298.10 KB

Description:

Thermopile temperature sensor.
