TSD1760

Low Vcesat NPN Transistor

TSD1760 Features

* Low VCE(SAT) 0.25 @ IC / IB = 2A / 200mA (Typ.) Complementary part with TSB1184CP Ordering Information Part No. TSD1760CP RO Package TO-252 Packing 2.5Kpcs / 13” Reel Structure

* Epitaxial Planar Type NPN Silicon Transistor Absolute Maximum Rating (Ta = 25oC unless otherwi

TSD1760 General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSD1760 Datasheet (252.57 KB)

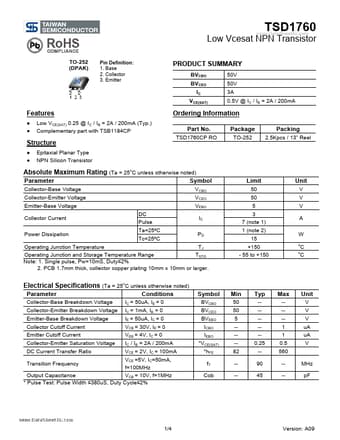

Preview of TSD1760 PDF

Datasheet Details

Part number:

TSD1760

Manufacturer:

Taiwan Semiconductor Company

File Size:

252.57 KB

Description:

Low vcesat npn transistor.
Low Vcesat NPN Transistor TO-252 (DPAK) Pin Definition: 1. Base 2. Collector 3. Emitter www.DataSheet4U.com TSD1760 PRODUCT SUMMARY BVCBO BVCEO IC .
