SMT LED LAMP PLCC-2 PACKAGE

PLCC-x Features

* s s CATHODE ANODE FOR QTLP670C

* 7 .043 (1.1) .020 (.5) .024 (.6) .016 (.4) .007 (.18) .005 (.12) s s Non-diffused package for backlighting and coupling to light pipe Low package profile Low power dissipation Wide viewing angle NOTE: ALL DIMENSIONS ARE IN INCHES (mm) ABSOLUTE MAXIMUM RATI

PLCC-x General Description

The QT Optoelectronics surface mount lamps are designed with a flat top and sides for automatic placement equipment. They are compatible with convective IR and vapor phase reflow soldering and conductive epoxy attachment process. .118 (3.0) .102 (2.6) .091 (2.3) .083 (2.1) Ø .04 (.1) .083 (2.1) .0.

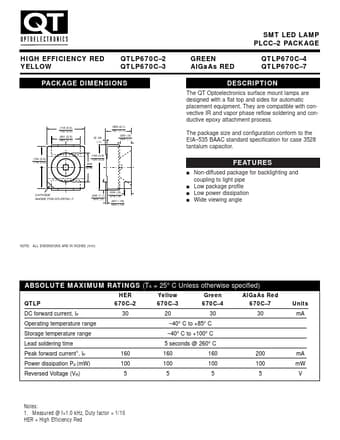

PLCC-x Datasheet (40.80 KB)

Preview of PLCC-x PDF

Datasheet Details

Part number:

PLCC-x

Manufacturer:

QT Optoelectronics

File Size:

40.80 KB

Description:

Smt led lamp plcc-2 package.
SMT LED LAMP PLCC

*2 PACKAGE HIGH EFFICIENCY RED YELLOW QTLP670C

*2 QTLP670C

*3 GREEN AlGaAs RED QTLP670C

*4 QTLP670C
<.
