QRD1114 REFLECTIVE OBJECT SENSOR

QRD1114 Description

QRD1113/1114 REFLECTIVE OBJECT SENSOR PACKAGE DIMENSIONS 0.083 (2.11) OPTICAL CENTERLINE 0.240 (6.10) 0.120 (3.05) PIN 1 INDICATOR .

QRD1114 Features

* Phototransistor Output
* No contact surface sensing
* Unfocused for sensing diffused surfaces
* Compact Package
* Daylight filter on sensor 0.173 (4.39) 0.183 (4.65) NOTES 0.500 (12.7) MIN (Applies to Max Ratings and Characteristics Tables. ) 0.020 (0.51

📥 Download Datasheet

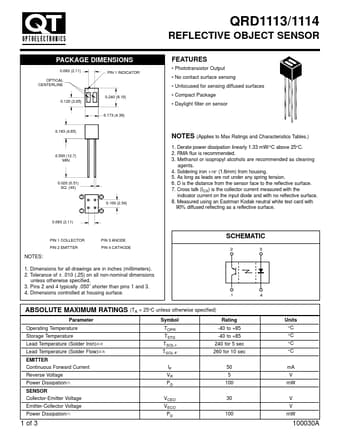

Preview of QRD1114 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QRD1114
Manufacturer
QT Optoelectronics
File Size
135.93 KB
Datasheet
QRD1114_QTOptoelectronics.pdf
Description
REFLECTIVE OBJECT SENSOR
