QT114 CHARGE-TRANSFER QLEVEL SENSOR IC

The QT114 QuickLevel™ charge-transfer (“QT”) sensor IC is specifically designed to detect point level in fluids and powders. It will project a sense field through almost any dielectric, like glass, plastic, or ceramic, to sense level on the inside of a vessel, from its exterior. It has the unique ca.

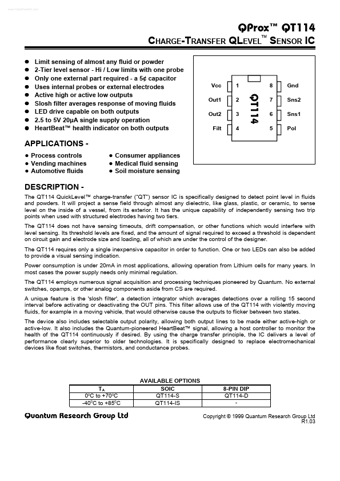

www.DataSheet4U.com CHARGE-TRANSFER QLEVEL™ SENSOR IC ! ! ! ! ! ! ! ! ! Limit sensing of almost any fluid or powder 2-Tier level sensor - Hi / Low limits with one probe Only one external part required - a 5¢ capacitor Uses internal probes or external electrodes Active high or active low outputs Slosh filter averages response of moving fluids LED drive capable on both outputs 2.5 to 5V 20µA single supply operation HeartBeat™ health indicator on both outputs QProx™ QT114 Vcc Out1 Out2 Filt 1 .
