TX7-705C-C-ST3 - STRATUM III SMD TCXO CMOS

📥 Download Datasheet

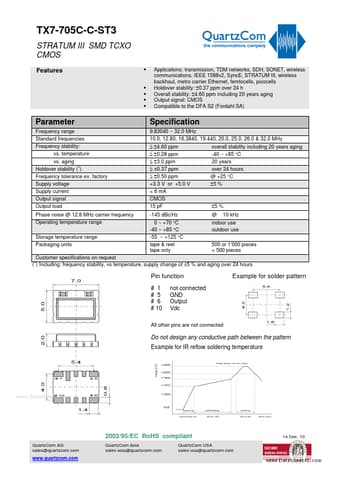

Datasheet preview – TX7-705C-C-ST3

Datasheet Details

Part number TX7-705C-C-ST3
Manufacturer QUARTZCOM the communications
File Size 173.59 KB
Description STRATUM III SMD TCXO CMOS
Datasheet download datasheet TX7-705C-C-ST3 Datasheet
Additional preview pages of the TX7-705C-C-ST3 datasheet.

📁 Similar Datasheet

  • TX7022H - Low Power Voltage Detector (ChipSourceTek)
  • TX7024H - Low Power Voltage Detector (ChipSourceTek)
  • TX7027H - Low Power Voltage Detector (ChipSourceTek)
  • TX7030H - Low Power Voltage Detector (ChipSourceTek)
  • TX7033H - Low Power Voltage Detector (ChipSourceTek)
  • TX7036H - Low Power Voltage Detector (ChipSourceTek)
  • TX7039H - Low Power Voltage Detector (ChipSourceTek)
  • TX7040H - Low Power Voltage Detector (ChipSourceTek)
  • TX7044H - Low Power Voltage Detector (ChipSourceTek)
  • TX7050H - Low Power Voltage Detector (ChipSourceTek)
Other Datasheets by QUARTZCOM the communications

Full PDF Text Transcription

Click to expand full text
TX7-705C-C-ST3 STRATUM III SMD TCXO CMOS Features ƒ ƒ ƒ ƒ ƒ Applications: transmission, TDM networks, SDH, SONET, wireless communications, IEEE 1588v2, SyncE, STRATUM III, wireless backhaul, metro carrier Ethernet, femtocells, picocells Holdover stability: ±0.37 ppm over 24 h Overall stability: ±4.60 ppm including 20 years aging Output signal: CMOS Compatible to the DFA S2 (Fordahl SA) Parameter Frequency range Standard frequencies Frequency stability: vs. temperature vs. aging Holdover stability (1) Frequency tolerance ex. factory Supply voltage Supply current Output signal Output load Phase noise @ 12.8 MHz carrier frequency Operating temperature range Storage temperature range Packaging units Specification 9.83040 ~ 32.0 MHz 10.0, 12.80, 16.3840, 19.440, 20.0, 25.0, 26.0 & 32.
