ACT6358NH-T, ACT6358 40V Step-Up WLED Bias Supply

ACT6358NH-T Description

ACT6358 High-Efficiency, 40V Step-Up WLED Bias Supply .
The ACT6358 step-up DC/DC converter drives white LEDs with an externally programmable constant current.

ACT6358NH-T Features

* High-Efficiency DC/DC WLED Bias Supply
* Internal 40V, 0.55Ω Power MOSFET
* Up to 10 WLEDs per String
* 1A Peak Current
* Supports Analog and PWM LED Dimming
* Integrated Over-Voltage Protection (OVP)
* Programmable Soft-Start Function

ACT6358NH-T Applications

* TFT LCD Displays
* Smart Phones
* Portable Media Players

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ACT6358NH-T, ACT6358. Please refer to the document for exact specifications by model.

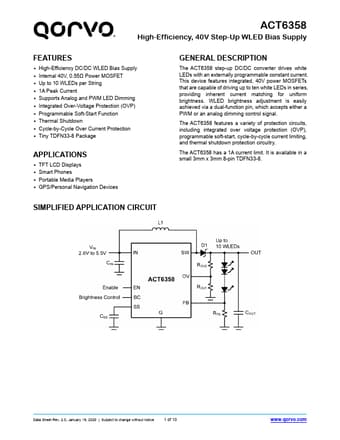

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ACT6358NH-T, ACT6358
Manufacturer
Qorvo
File Size
801.56 KB
Datasheet
ACT6358-Qorvo.pdf
Description
40V Step-Up WLED Bias Supply
Note
This datasheet PDF includes multiple part numbers: ACT6358NH-T, ACT6358.
Please refer to the document for exact specifications by model.
