ACT85610 - Integrated High Voltage Power Loss Protection

Description

The ACT85610 device is a highly integrated, high configurable multiple output power management unit (PMIC) with built-in power loss protection (PLP) IC.

There are four high efficiency Bucks that can supply 3 x 4A and 1 x 2A current with the output as low as 0.6V.

Features

  • HIGH.

📥 Download Datasheet

Datasheet preview – ACT85610

Datasheet Details

Part number ACT85610
Manufacturer Qorvo
File Size 1.04 MB
Description Integrated High Voltage Power Loss Protection
Datasheet download datasheet ACT85610 Datasheet
Additional preview pages of the ACT85610 datasheet.

📁 Similar Datasheet

  • ACT8500 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8501 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8502 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8503 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8504 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8505 - Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8506 - 48-Channel Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8507 - 64-Channel Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8508 - 32-Channel Analog Multiplexer (Aeroflex Circuit Technology)
  • ACT8509 - 64-Channel Analog Multiplexer (Aeroflex Circuit Technology)
Other Datasheets by Qorvo

Full PDF Text Transcription

Click to expand full text

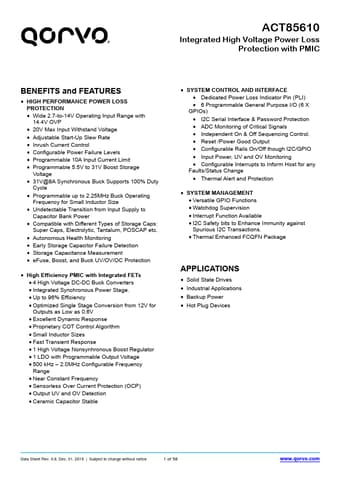

ACT85610 ® Integrated High Voltage Power Loss Protection with PMIC BENEFITS and FEATURES • HIGH PERFORMANCE POWER LOSS PROTECTION • Wide 2.7-to-14V Operating Input Range with 14.4V OVP • 20V Max Input Withstand Voltage • Adjustable Start-Up Slew Rate • Inrush Current Control • Configurable Power Failure Levels • Programmable 10A Input Current Limit • Programmable 5.5V to 31V Boost Storage Voltage • 31V@8A Synchronous Buck Supports 100% Duty Cycle • Programmable up to 2.25MHz Buck Operating Frequency for Small Inductor Size • Undetectable Transition from Input Supply to Capacitor Bank Power • Compatible with Different Types of Storage Caps: Super Caps, Electrolytic, Tantalum, POSCAP etc.
