QPA2609 - Low Noise Amplifier

Description

Qorvo’s QPA2609 is a packaged, high-performance, low noise amplifier fabricated on Qorvo’s production 90 nm pHEMT (QPHT09) process.

14 GHz, the QPA2609 provides 26 dB small signal gain with a low noise figure of 1.1dB.

Features

Frequency Range: 7 .
14 GHz.
Noise Figure: 1.1 dB.
Small Signal Gain: 26 dB.
P1dB: 18 dBm.
IM3:.
50 dBc (@ Pout=0 dBm/tone).
Bias: VD = 3.5 V, IDQ = 120 mA, VG =.
0.46 V.
Plastic Overmold Package.
Package Dimensions: 4.0 x 4.0 x 0.85 mm Performance is typical across frequency. Please reference electrical specification table and data plots for more details.

Datasheet Details

Part number	QPA2609
Manufacturer	Qorvo
File Size	1.17 MB
Description	Low Noise Amplifier
Datasheet	QPA2609 Datasheet

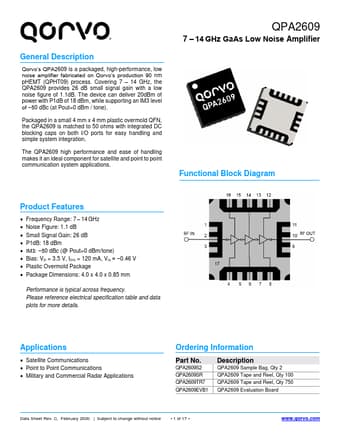

Additional preview pages of the QPA2609 datasheet.

📁 Similar Datasheet

QPA2626 - GaAs Low Noise Amplifier (TriQuint Semiconductor)

QPA2628 - GaAs Low Noise Amplifier (TriQuint Semiconductor)

QPA2628D - GaAs Low Noise Amplifier (TriQuint Semiconductor)

QPA2237 - 10W GaN Power Amplifier (TriQuint Semiconductor)

QPA1013D - 10W GaN Power Amplifier (TriQuint)

QPA3230 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)

QPA3240 - GaAs/GaN Power Doubler Hybrid (RF Micro Devices)

QPA4263A - DC to 3500MHz CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)

QPA4363A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)

QPA4463A - CASCADABLE SiGe HBT MMIC AMPLIFIER (RF Micro Devices)

Full PDF Text Transcription

Click to expand full text

General Description Qorvo’s QPA2609 is a packaged, high-performance, low noise amplifier fabricated on Qorvo’s production 90 nm pHEMT (QPHT09) process. Covering 7 – 14 GHz, the QPA2609 provides 26 dB small signal gain with a low noise figure of 1.1dB. The device can deliver 20dBm of power with P1dB of 18 dBm, while supporting an IM3 level of −50 dBc (at Pout=0 dBm / tone). Packaged in a small 4 mm x 4 mm plastic overmold QFN, the QPA2609 is matched to 50 ohms with integrated DC blocking caps on both I/O ports for easy handling and simple system integration. The QPA2609 high performance and ease of handling makes it an ideal component for satellite and point to point communication system applications.
